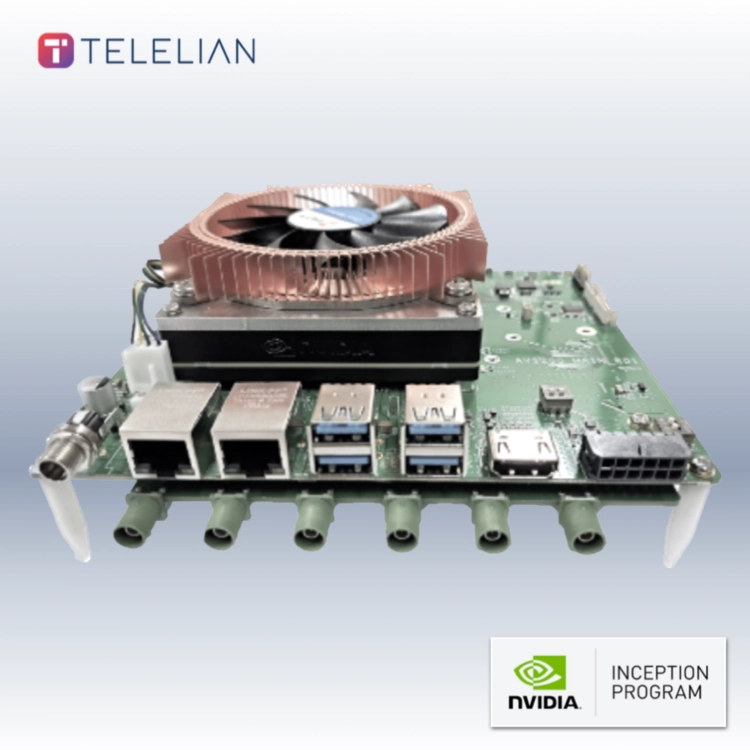

Cloud-Based Remote Operation for AI Training with Automatic Data Collection & Autonomous Embedded Device
Synchronizes and stores sensor data from Lidar, radar, cameras, CAN, GPS, and IMU with time-stamps.
Reduces video data size with Automotive Grade ADAS camera modules supporting GMSL2 interface and H.265/AV1.
Applicable in cars and robots with deep learning autonomous control systems based on Jetson AGX Orin or Orin NX platforms.
Cloud-Based Remote Operation for AI Training with Automatic Data Collection & Autonomous Embedded Device
Specification
AVS200: AGX Orin Module (AI Perf. 32G/200TOPs, 64G/275TOPs)
GMSL2 to MIPI * 8ch
(* Max 16ch with AGX Orin )
Automotive CAN-FD * 2ch (HS-CAN compatible)
(* CAN or Radar interface)
M.2 NVMe SSD * 1ch
eMMC 64GB * 1ch
USB3.1 Host * 4ch
HDMI 4k Ouput * 1ch
miniPCI: LTE or WiFi * 1ch
Ethernet 1Gbps * 2ch
(* Lidar input & Local NAS storage)
External input * 2ch
(* Camera Trigger sync )
External output * 2ch
RS232 UART * 2ch
DC10V~30V
Size 160*140mm
Synchronizes and stores sensor data from Lidar, radar, cameras, CAN, GPS, and IMU with time-stamps.
Automotive ADAS camera modules equipped with GMSL2 interface and support for H.265/AV1, significantly reducing the size of collected video data.
Deep learning autonomous control systems based on the Jetson AGX Orin or Orin NX platforms, suitable for use in both automobiles and robots.
* Orin nano / Orin NX: Supports up to 8 virtual camera channels.
* AGX Orin: Supports up to 16 virtual camera channels.
* All cameras can be synchronized either internally or externally.
* Digital input and output can be utilized for synchronization with external Lidar or cameras.
