- Automotive Recognition Image Sensor Supporting HDR and LFM
- GEO Semiconductor ADAS ISP (Image Signal Processor) for Image Sensor Tuning
- GMSL Interface, a Serial Transmission Standard used in the Automotive Industry
-- Delivery : ~ 4 weeks --

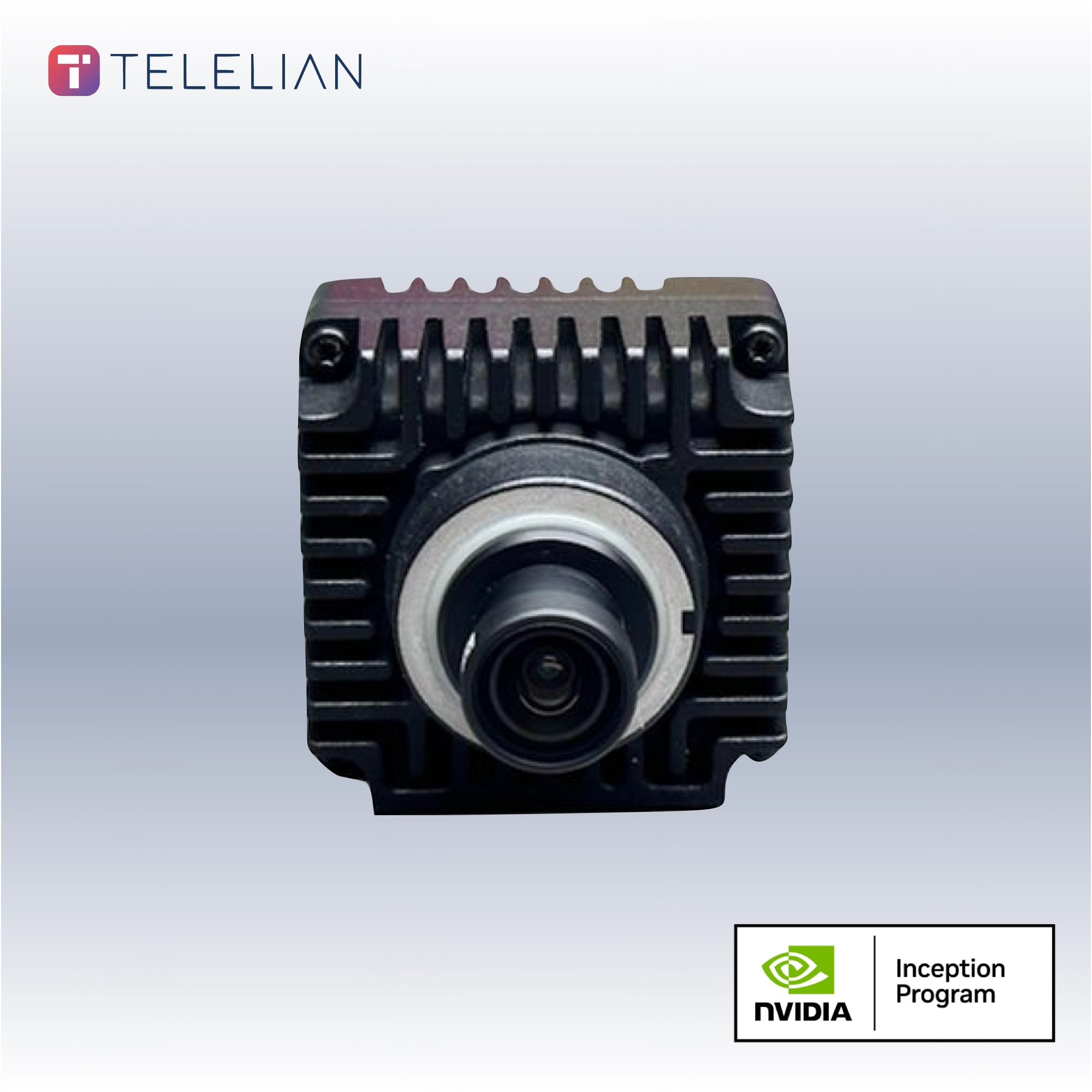

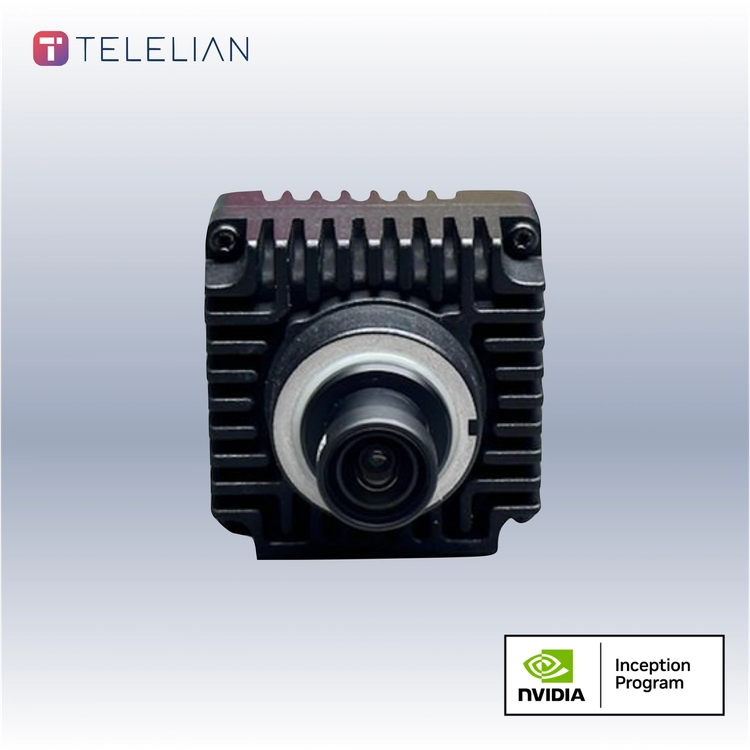

AI / ADAS Dedicated Camera Module
Application of GEO Semiconductor ISP (Image Signal Processor) for Enhanced Image Quality
Support for Automotive High-Speed Serial Interface GMSL2
HDR (High Dynamic Range): Expands the range of light and dark in images, ensuring clear visibility in both bright and dark areas
LFM (Led Flickering Mitigation): Reduces flickering in LED-based traffic lights and signs
Available of a wide range of camera modules from 2M (Full HD) to 8M (4k) resolution and various FOV (Field of View) angles
Features
Output format: Uncompressed YUV422 format
S-mount IP67 compliant lens focused and glued at our factory
Multi−Camera synchronization Support
Support different focal length lens
FCC , CE and RoHS
Specification
Model : SG8-OX08BC-5300-GMSL2-Hxxx
Resolution : 3840H x 2160V
Frame Rate : 3840 x 2160@30fps
Sensor : OmniVision 8.3MP OX08B40 RGGB
ISP : GW5300
Connector : Amphenol Fakra（Z Code ）
Output data : YUV422@8bit
Serializer : MAXIM MAX9295A
Sensor Type : Rolling Shutter
Operating temp.range : -40°C～+85°C
Dimensions : 40mm x 40mm x 23mm
FOV : 30°/60°/120°
Comparison
Effective in Sunlight & Headlights
Dimension
